Texas Weapons Dog Leg Rail GEN 3 for Standard AK/AKM #33310

TWS  #33310 DOG LEG AK47 SCOPE MOUNT TEXAS WEAPON SYSTEMS GEN3



Price: $164.95

Stock Status:
IN STOCK AVAILABLE FOR PURCHASE

SKU#: TWS-MOUNT-33310
Qty:

Description

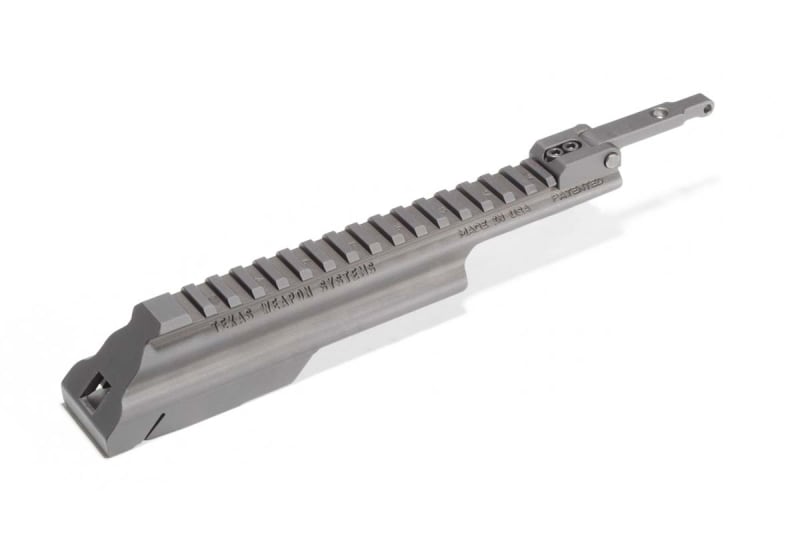

TWS #33310 AK Top Cover Rail

Works on most AK47's, all SAIGA Rilfes & Standard Version 1 VEPR Rifles (except 7.62x54r). Does not fit Vepr Version 2.

Scoped AK rifles require a very low mounted optic to maintain a proper cheek weld for consistent shooting. One only needs to observe the height of the standard iron sights to confirm this. Most scope mounts for the AK place the optics too high to maintain a proper cheek weld. This is done as a compromise to allow scope mounting while permitting top cover removal. This unfortunate compromise forces the shooter to brace the buttstock along the jaw line, or in some cases, completely under the chin.

Texas Weapon Systems Dog Leg™ AK rail solves this dilemma with the innovative new third-generation Dog Leg™ Scope Rail with integral dust cover. Incorporating a unique joggle shape behind the rear sight block, the TWS 33310 provides the lowest possible MIL-STD-1913 mounting surface. The field stripping capability is preserved with the quick-release cam-lock mechanism that precisely returns to zero and is so simple to operate.

The TWS Dog Leg™ Scope Rail replaces the standard dust cover and easily installs with a single hinge pin to the rear sight block in place of the rear leaf sight. The included cam-lock release button replaces the standard release button and is installed to the return spring.

It will fit most AK pattern rifles, including stamped and milled receivers, as well as fixed, under-folding and side-folding stocks. The adjustable front tab allows custom fitting to the user's individual weapon.

*Note:

  • Peep Sight sold separately.
  • Works on most AK-47s, all Saiga rifles & Standard Version 1 VEPR rifles (except 7.62x54r).
  • Will not fit Yugo AKs.
  • Does not fit VEPR Version 2.
  • This will not fit the Saiga shotguns.
  • This will fit all Saiga and VEPR Version 1 rifles.


recommended accessories for this product
Texas Weapons Rear Peep Sight for GEN 3 Dog Leg #42317 Texas Weapons Guide Wire & Spring Retainer #55315
Price: $39.99
Price: $12.95
TWS REAR PEEP SIGHT TEXAS WEAPON SYSTEM #42317 TWS Texas Weapons System guide wire 55315

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 10 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Easiest TWS install October 19, 2021
Reviewer: Bubba Chuck from Niceville , FL United States
This install was a breeze, and the top cover lined up perfectly for my PSA series AK.  I had to order an older style 3 piece recoil assembly from PSA for 19.99 to use in conjunction with the the new push button half, and it worked and fit like a charm.  I’m sure with the newer recoil spring assemblies for AK’s that it would of functioned alright, but the extended push button provided in the kit works even better!  10 stars

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 September 25, 2021
Reviewer: Viper 308 from Lyons, NY United States
Have 3 of these and just love em!!! Keeps zero great!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 TWS Rail September 22, 2021
Reviewer: Anonymous Person
Solid design, great price compared to the only other railed dust cover option, and it does exactly what I want it to.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 awesome service Product in stock September 6, 2021
Reviewer: Jason Larson from KALISPELL, MT United States
I appreciate Carolina shooter supplies prompt delivery of the items that I order... I also appreciate that their products are labeled extremely well and have a good description online... This aids did not ordering the wrong part.. As far as  Is the Texas weapon systems dog leg real Gen 3 It has amazing fit and finish and dropped right onto my Riley defense AK47 no problems...

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Topping Off Your AK June 21, 2021
Reviewer: from Where least expected
The TWS DOG-LEG  AK-47 top cover is  no dog. Top quality part that  mated perfectly with my ARSENAL SL-107R, which I outfitted with SLR Rifleworks’ picatinny gas tube and  13.5” Lite  Rail, which allowed the use of Surfire’s AK WARCOMP.  The TWS top cover allowed me to seamlessly mount a Trijicon TA44 in a Larue QD mount, which saves a bit of weight over a side rail-mount.  Great piece of gear!

Was this review helpful to you?

View All Customer Reviews
