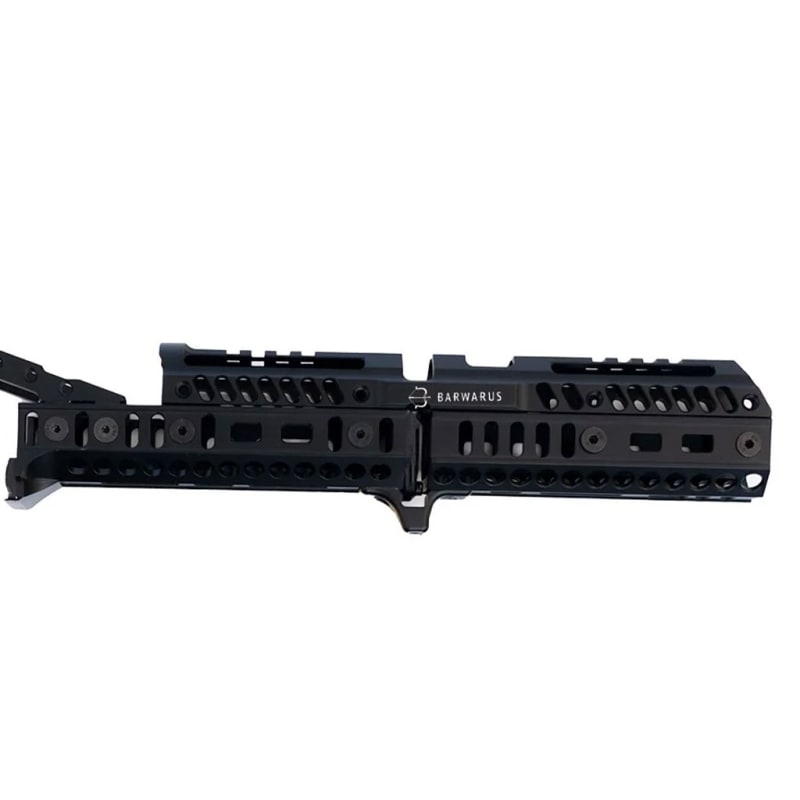

Barwarus BW-T4 AK Handguard
The new patent-pending MLOK handguard allows the user toinstall MLOK accessories. Dissipates barrel heat, allowing the rifle to be used for aprolonged time. It comes in 3 parts.
SPECIFICATIONS:
Fits AKM model rifles with 16” barrels
Install additional accessories directly on the handguardusing industry-standard MLOK accessories
Made from an extrusion with a hard black Cerakote coating
Material: 6082 alloys (more robust than D16).
Operating ambient temperature range: -122F to +122F
Allows the displacement of barrel heat
Upper Handguard description:
Designed to be mounted together with the lower handguard rail with 8 screws + does not block the line of iron sight.
Top rail is Picatinny for optional Optic mount
Lower Handguard description:
MLOK compatible mounts on three sides for installation of additional equipment.
Has trigger style removable stabilizer for your hand
Has cutout for handguard retainer bracket and sling loop.
Has removable barrel heat dissipation adapter
Weight: 10.8 Ounces
Length: 11.5 inches
Note: Not all AK platform manufacturers adhere to theRussian Kalashnikov design (s), and some filing may be required.
Note: User excessive force or misuse of tools may causedamage to the rail, which will not be covered under warranty.
Disclaimer: Barwarus provides a lifetime warranty onmanufacturer defects on this product. We have tested and installed this producton many (thousands) AK-stamped receivers of many brands.Some adjustments may be required since somebrands have quality control issues.Others may need some pressure (tap down) to set them in place.
Compatible weapon models include:AKUSA 100 SERIES, KM, AKMS, AK-74, AK-74M,AK-101, Saiga MK 223 Rem, Saiga MK 7.62.30, Saiga MK 5.45 isp. 30, TG-2, Saiga308 Win v.61, Vepr-K (VPO-133), Vepr-KM (VPO-136), VPO-209, AK-366-Lancaster .
Saiga and VEPR Owners
Gunsmithing required.
We recommend an AKM gastube but not required (its looks better) - sold separately.
Handguard retaining bracket required - sold separately.
If you are using CSS's 2 Piece bracket, the handguard will need to be modified.
Using a dremel tool, remove metal from the inner flange on the front section of the handguard until the bracket fits.
These modifications are not on the visible surfaces of the T4.
You can also install a one piece bracket which requires stripping the barrel and slotting the barrel.
